The Science of Air Conditioning, Explained Simply

Turn the page title over in your head for a moment. It sounds like nonsense. You have stood in a freezing car park in February and felt cold coming at you in waves. Cold is real. Cold is the whole reason you own a coat.

And yet, in physics, there is no such thing. Cold is not a substance. It is not something that flows, pools, or leaks in around your window frames. Cold is simply what we call the absence of heat, in the same way that dark is what we call the absence of light.

Once you accept that, everything else about air conditioning falls into place. Because your air conditioner has never once made cold. It cannot. What it does is far more interesting.

Start at the bottom

To see why, you have to start at the very bottom of the temperature scale.

We are used to Celsius, where zero is the point at which water freezes. It is a useful number for humans (it tells you whether to expect ice on the windscreen) but it is a completely arbitrary place to put a zero. Water is not special. The universe does not care about water.

Physicists use the Kelvin scale instead, and its zero is the real one. Absolute zero (0 K, or −273°C) is the point at which all molecular motion stops. Nothing jiggles. Nothing vibrates. There is no thermal energy left in the substance at all. It is as cold as cold can possibly get, and nothing in the universe has ever quite reached it.

Now look at where water freezes on that scale: 273 K.

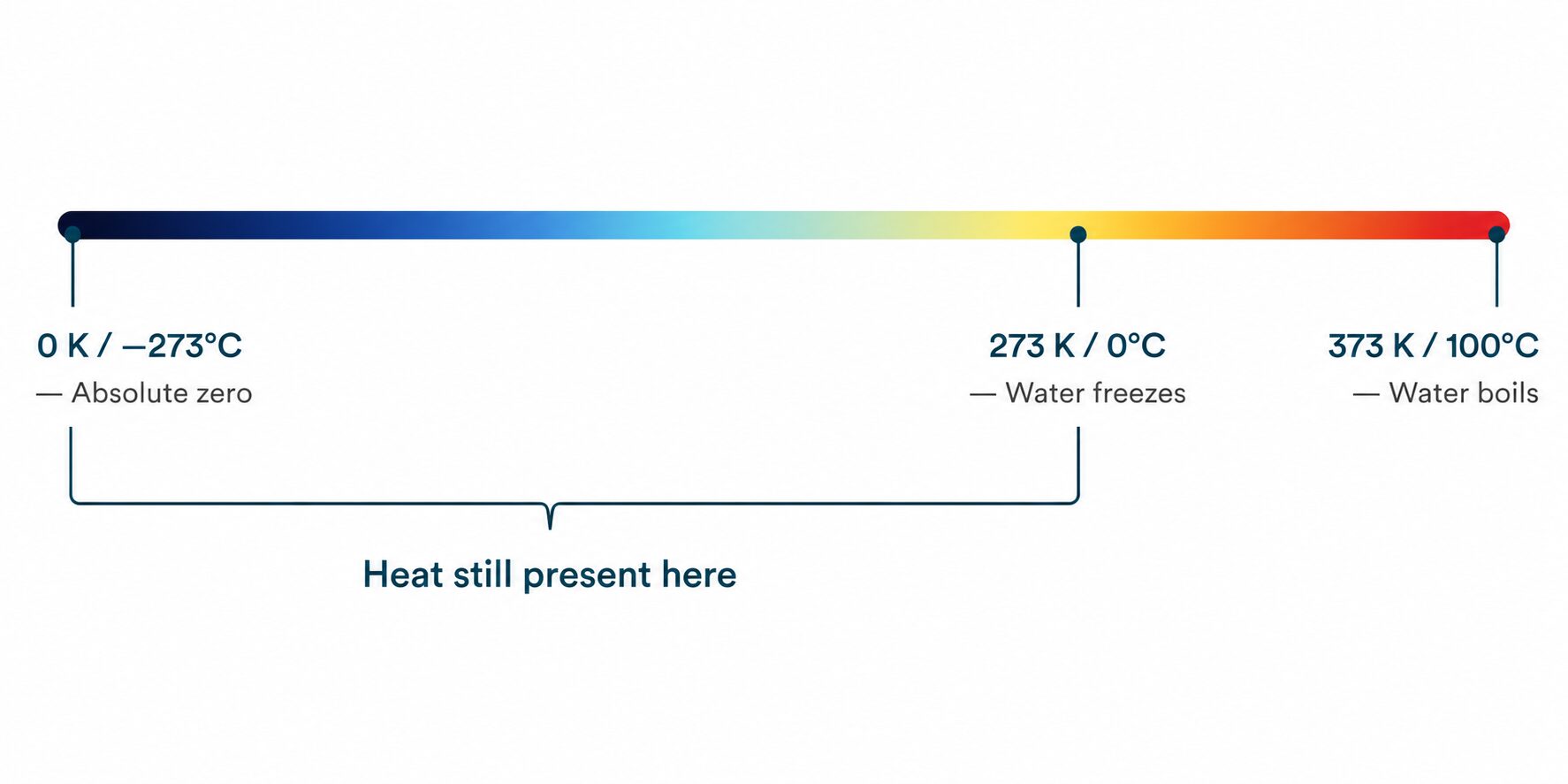

A color-coded temperature scale illustrates absolute zero, water freezing point, and water boiling point within a gradient background

That is not close to the bottom. That is nearly three-quarters of the way up from absolute zero to boiling point. An ice cube, the thing you reach for to make something cold, is absolutely brimming with thermal energy. It has enormous amounts of the stuff. It only seems cold to you because you happen to be sitting at 310 K, and you are used to it.

And a frosty January morning at −2°C? That air is at 271 K. It is loaded with heat. There is a colossal amount of energy in the air outside your house on the coldest day you have ever experienced, and it is there for the taking.

That is not a rhetorical flourish. That is the operating principle of the box on your wall.

Heat is a verb, not a noun

Here is the second idea, and it is the one that trips most people up.

Nothing contains heat. Not a radiator, not a cup of tea, not the sun. What a substance contains is thermal energy: the sum total of its molecules jiggling about. Faster jiggling means more thermal energy, which is what we register as a higher temperature.

Heat is the name we give that energy while it is moving from one place to another. It is energy in transit. A cup of tea does not hold heat; it holds thermal energy, and it heats the room by transferring some of that energy to the cooler air around it.

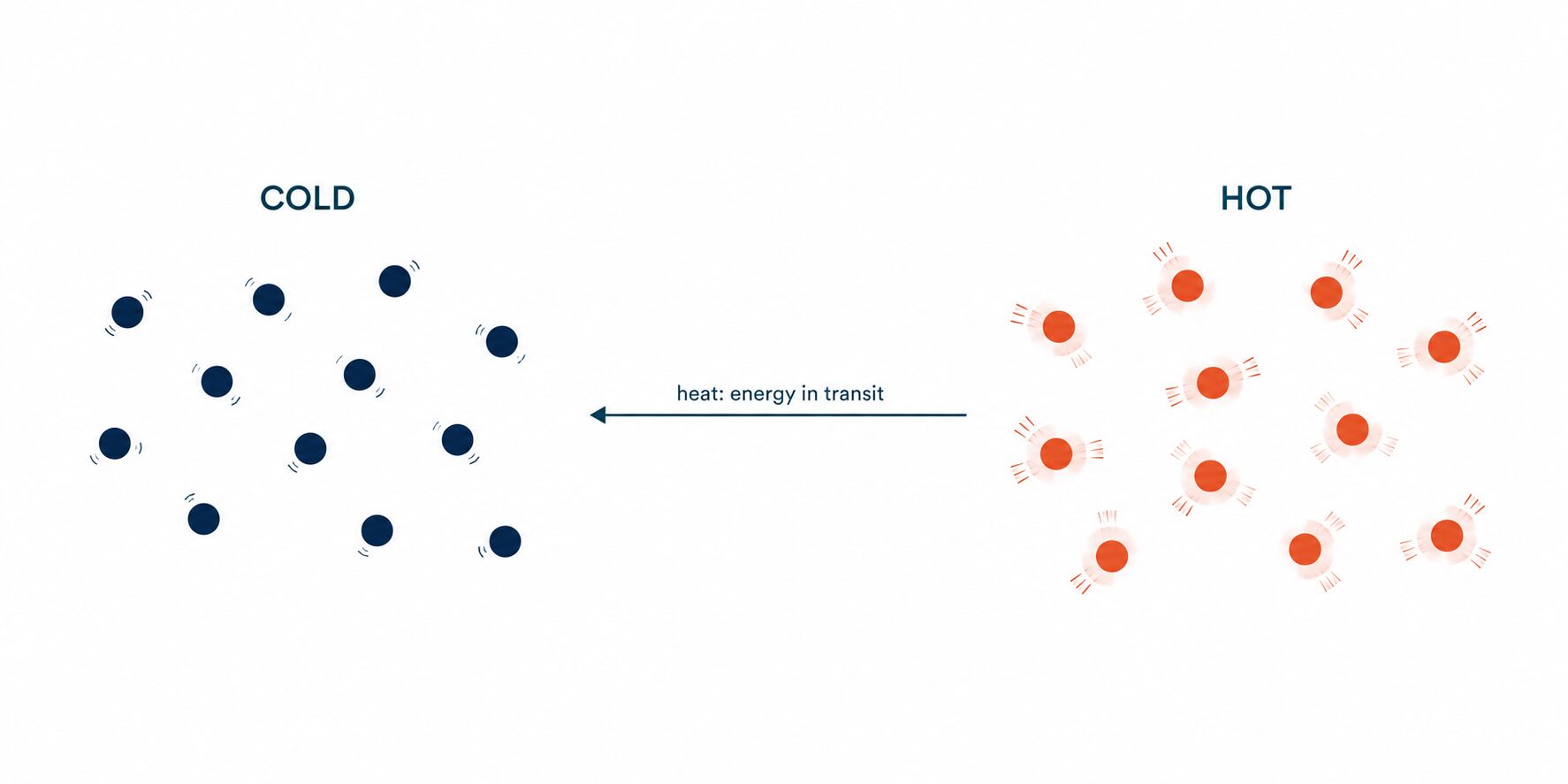

A diagram contrasting matter at the molecular level. On the left, labelled COLD, dark navy molecules sit almost still. On the right, labelled HOT, orange molecules vibrate rapidly with short motion lines around them. An arrow labelled 'heat: energy in transit' runs from the hot side to the cold side, showing that heat is energy flowing from hot to cold.

It is a fussy distinction, but it is the one that unlocks the whole machine. Because if heat is a transfer, then the question stops being “how do I make cold?” and becomes something much more answerable: how do I get thermal energy to move from where I don’t want it, to where I don’t mind it?

The one rule

There is exactly one rule governing that transfer, and it is inviolable.

Heat always flows from hot to cold. Never the other way.

This is the Second Law of Thermodynamics, and it is one of the most stubbornly reliable facts in all of science. Leave a hot mug on a cold table and the mug cools and the table warms. It never, ever happens in reverse. You have never seen a lukewarm cup of tea spontaneously reheat itself by stealing warmth from the table, and you never will.

Which leaves our air conditioner with a genuine problem.

On a 30°C afternoon, you want to move thermal energy out of a 22°C room and into a 30°C garden. That is uphill. That is heat flowing from cold to hot, precisely the direction the universe forbids.

In winter, it is worse. You want to gather thermal energy from 2°C air outside and deliver it into a 21°C living room. Uphill again.

So how does a small white box on the wall break the most reliable law in physics?

It doesn’t. It cheats.

The cheat

The trick is to stop trying to move heat between the room and the garden directly, and instead put a middleman between them: a fluid called refrigerant, pumped around a sealed loop that runs from indoors to outdoors and back.

Refrigerant is chosen for one special quality: it boils and condenses at conveniently low temperatures. And here is the crucial part. The system doesn’t need to break the second law. It just needs to make sure that, at each end of the loop, the refrigerant is on the correct side of it.

When the refrigerant is inside your room, it must be colder than the room. Then heat flows naturally into it, downhill and entirely legally, and the room cools.
When that same refrigerant reaches the outdoor unit, it must be hotter than the garden. Then heat flows naturally out of it, downhill again and still legal, and the energy is dumped outside.

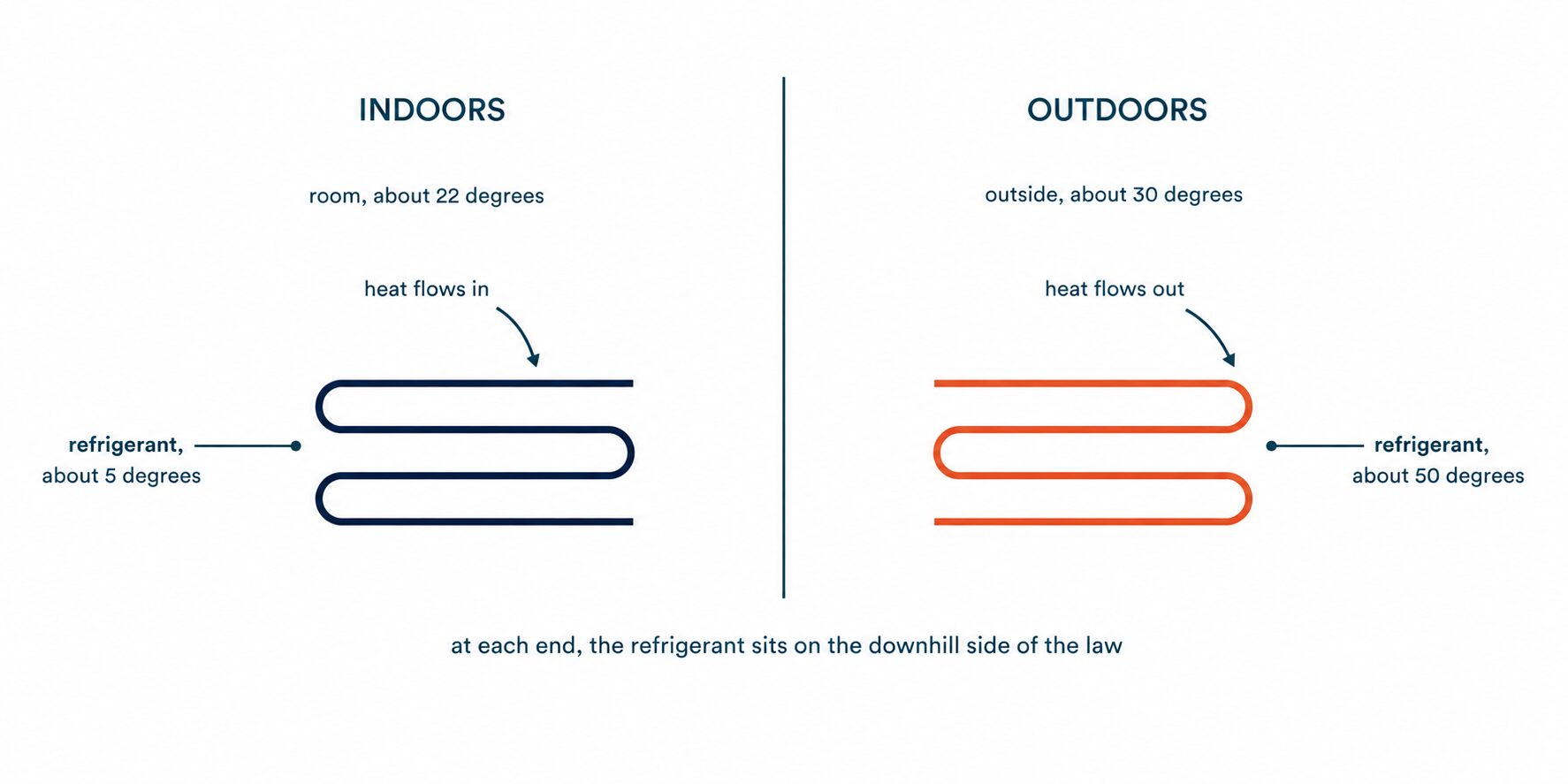

A diagram split into an indoor half and an outdoor half. Indoors, a cold refrigerant coil at about 5 degrees sits in a room at about 22 degrees, and an arrow labelled 'heat flows in' shows heat passing from the warmer room into the colder coil. Outdoors, a hot refrigerant coil at about 50 degrees sits in air at about 30 degrees, and an arrow labelled 'heat flows out' shows heat passing from the hotter coil into the cooler outside air. A caption reads that at each end the refrigerant sits on the downhill side of the law, so heat always flows from hot to cold.

Which is a lovely idea except for one obvious objection: it is the same refrigerant. How can one fluid be colder than a 22°C room at one end of the pipe and hotter than a 30°C garden at the other?

That is the compressor’s job.

What the compressor actually does

The compressor is the only component you are really paying to run, and it does something beautifully simple. It squeezes the refrigerant gas into a much smaller volume.

Think about what that means at a molecular level. The gas is a swarm of molecules flying about. The compressor drives a piston into that swarm, physically shoving the molecules and forcing them into less space. Being shoved makes them fly faster. And “flying faster” is not a consequence of a higher temperature; it is what temperature is.

So the gas comes out of the compressor hot. Genuinely, properly hot, far hotter than the summer air outside.

Note carefully what has not happened. No heat has been added. No fuel has been burned, no element has glowed. The energy that was already spread thinly through the gas has simply been concentrated into a smaller space. It is the difference between a wide, cool draught and a narrow, fierce jet.

At the far end of the loop, an expansion valve does exactly the reverse. It lets the refrigerant burst out into a much larger volume. Doing that costs the molecules energy (they have to spend some of their motion pushing outward) so they slow down, and the refrigerant turns bitterly cold. Colder than your room. Which is precisely what we needed.

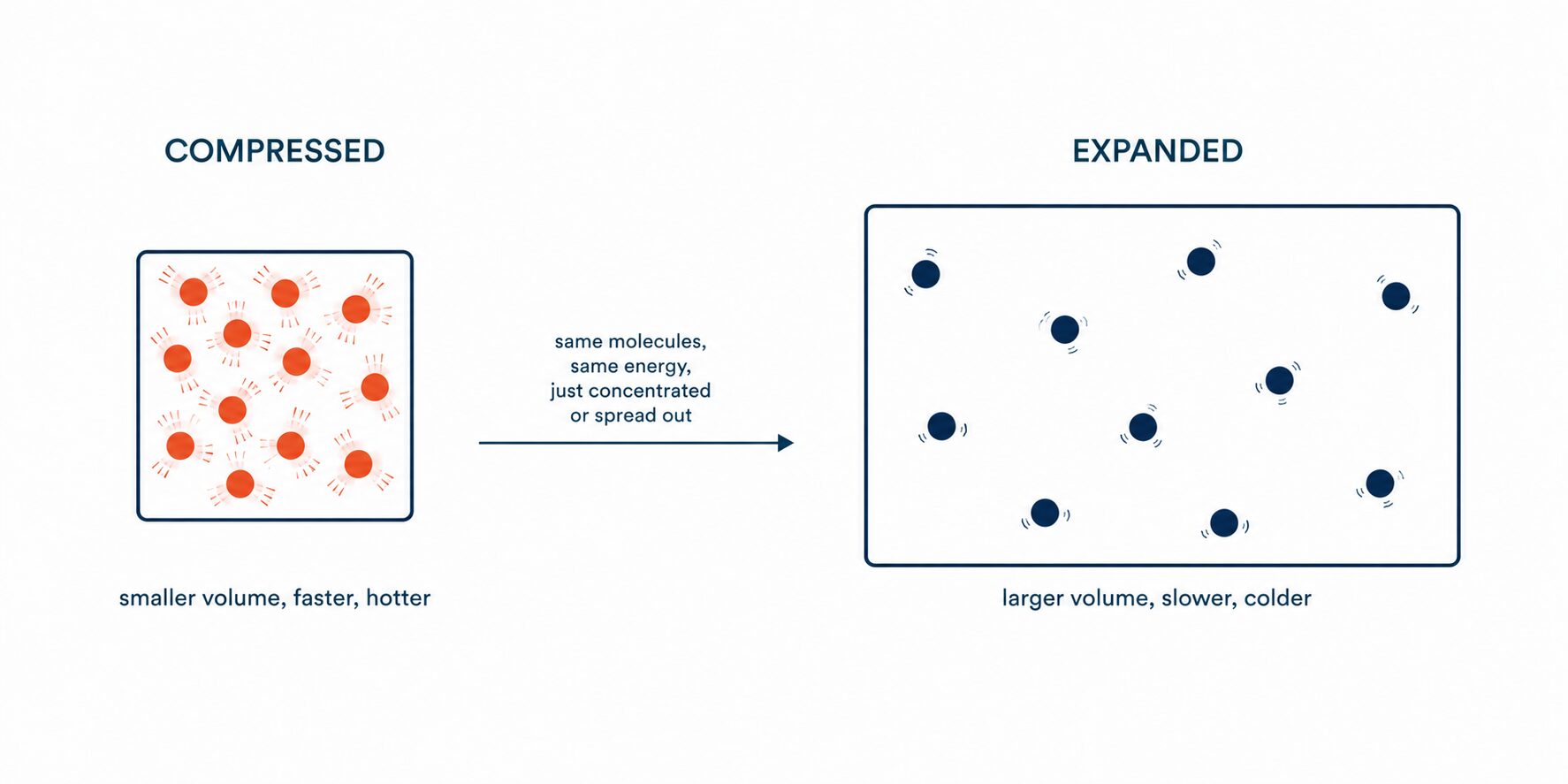

A diagram comparing gas that is compressed versus expanded. On the left, labelled COMPRESSED, orange molecules are crowded tightly into a small box with motion lines around them, captioned 'smaller volume, faster, hotter'. On the right, labelled EXPANDED, the same number of navy molecules are spread far apart and barely moving in a large box, captioned 'larger volume, slower, colder'. An arrow between them notes it is the same molecules and the same energy, just concentrated or spread out.

And that is the entire secret. The compressor and the expansion valve exist for one reason: to shift the refrigerant’s temperature above the outdoor air at one end, and below the indoor air at the other, so that at both ends heat can do what it always does: flow downhill.

The universe’s rule is never broken. It is simply outmanoeuvred.

The loop, end to end

Put it together and you get a continuous cycle:

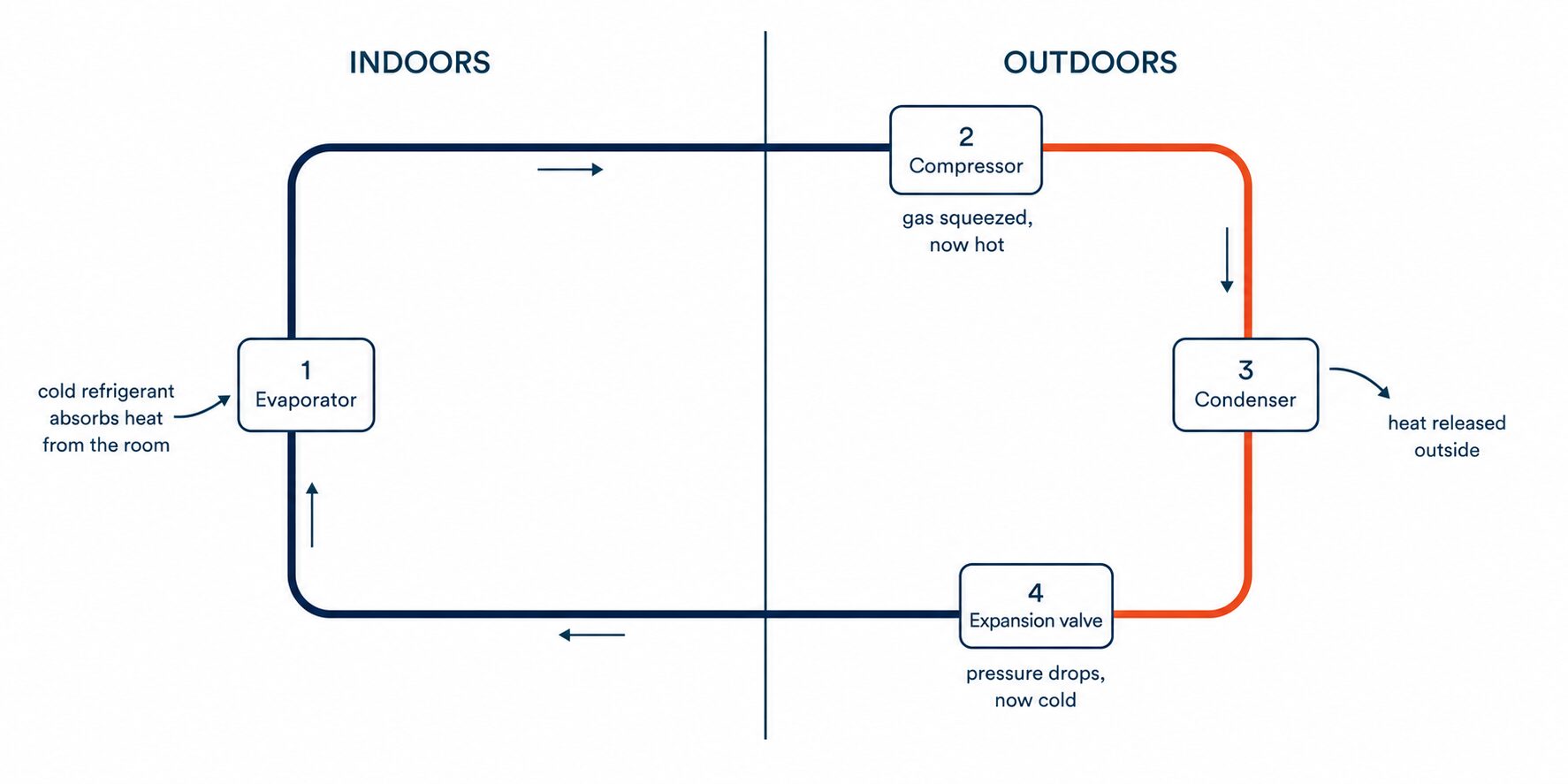

A diagram of the refrigeration cycle drawn as a single closed loop divided into an indoors half and an outdoors half. Cold navy-blue refrigerant leaves the evaporator (step 1) where room air warms it, flows through the compressor (step 2) and turns hot and orange, reaches the condenser (step 3) where heat is dumped outside, then passes through the expansion valve (step 4) and turns cold again before returning to the evaporator. Arrows show the refrigerant circulating continuously in one direction, with heat carried out of the room and released outside.

The evaporator (indoors). Very cold, low-pressure refrigerant arrives in the indoor coil. Warm room air is drawn across it by the fan. Heat flows out of the air and into the refrigerant, which boils into a gas. The air, now several degrees cooler, is blown back into the room.
The compressor (outdoors). That cool, low-pressure gas travels outside and is squeezed. It leaves as a hot, high-pressure gas, now hotter than the outdoor air.
The condenser (outdoors). The hot gas passes through the outdoor coil while a fan blows outside air across it. Heat flows out of the refrigerant and into the garden. Having given up its energy, the refrigerant condenses back into a warm liquid.
The expansion valve. The liquid passes through a narrow valve into a low-pressure region, expands, and turns intensely cold. It heads back indoors, and the cycle begins again.

The refrigerant goes round and round in a circle. The heat goes one way: out.

That warm draught you feel from the outdoor unit on a hot day is not exhaust. It is not waste. It is your living room. It is the actual thermal energy that was in your room a few minutes ago, now standing in the garden.

The bit that sounds too good to be true

Now for the payoff, and the reason all of this matters to your electricity bill.

A conventional electric heater turns electricity into heat. It is a one-for-one trade, and it is capped by physics: put in one unit of electricity, get out one unit of heat. It can never do better. A 2 kW heater gives you 2 kW of warmth, and not a watt more.

An air conditioner in heating mode does something categorically different. It is not making heat. It is fetching heat that already exists.

Remember where we started: even freezing air is packed with thermal energy. The system isn’t paying to create warmth, it is only paying to carry warmth that is already sitting out there in the cold air, gathered up and moved indoors. And carrying is far cheaper than creating.

So you put in 1 kW of electricity to run the compressor, and you get 3 to 4 kW of heat delivered into your home. The extra didn’t come from nowhere and it isn’t a violation of anything: it came from outside, where it was doing nothing useful for anybody.

It only looks like magic if you still believe the machine is making heat. Once you know it is a pump, it is just plumbing.

Same box, both directions

There is one last elegance to the design.

Nothing in that loop is inherently “the cooling end” or “the heating end”. The indoor coil absorbs heat and the outdoor coil rejects it purely because of which way the refrigerant is flowing. Reverse the flow (which a component called a reversing valve does with a single switch) and the two coils simply swap jobs.

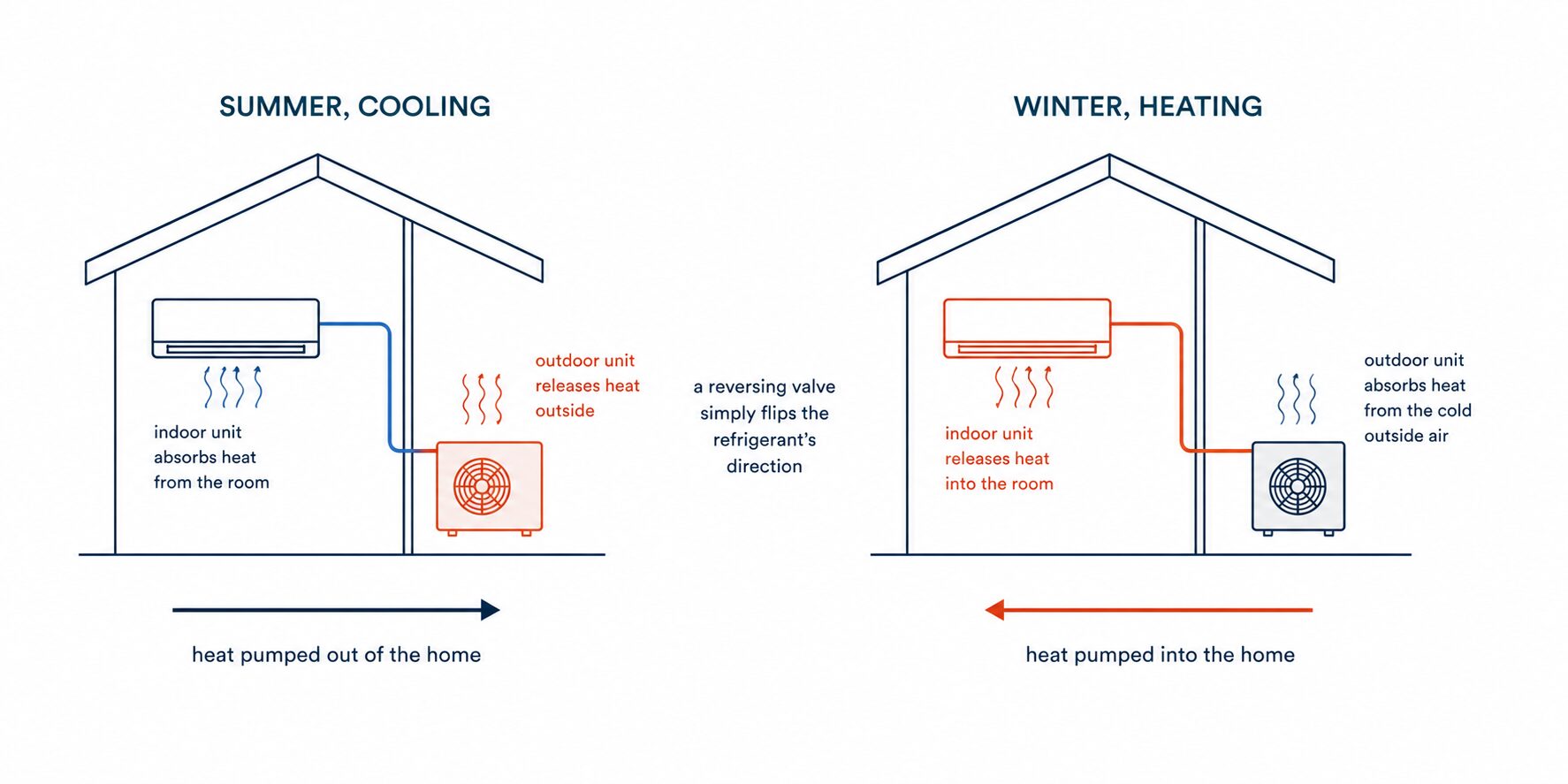

Two side-by-side diagrams of the same house showing a reversing valve at work. In summer cooling mode, the indoor unit absorbs heat from the room and the outdoor unit releases it outside, with heat pumped out of the home. In winter heating mode the flow is reversed: the outdoor unit absorbs heat from the cold outside air and the indoor unit releases it into the room, with heat pumped into the home. A note explains that a reversing valve simply flips the refrigerant's direction, so the same box both heats and cools.

Now the outdoor coil is the one absorbing heat, drawing thermal energy out of the cold winter air. And the indoor coil is the one releasing it, into your living room.

Same box. Same refrigerant. Same compressor. The heat now moves inward instead of outward, and the machine that cooled you in July heats you in January.

Here is what actually sits inside that outdoor box.

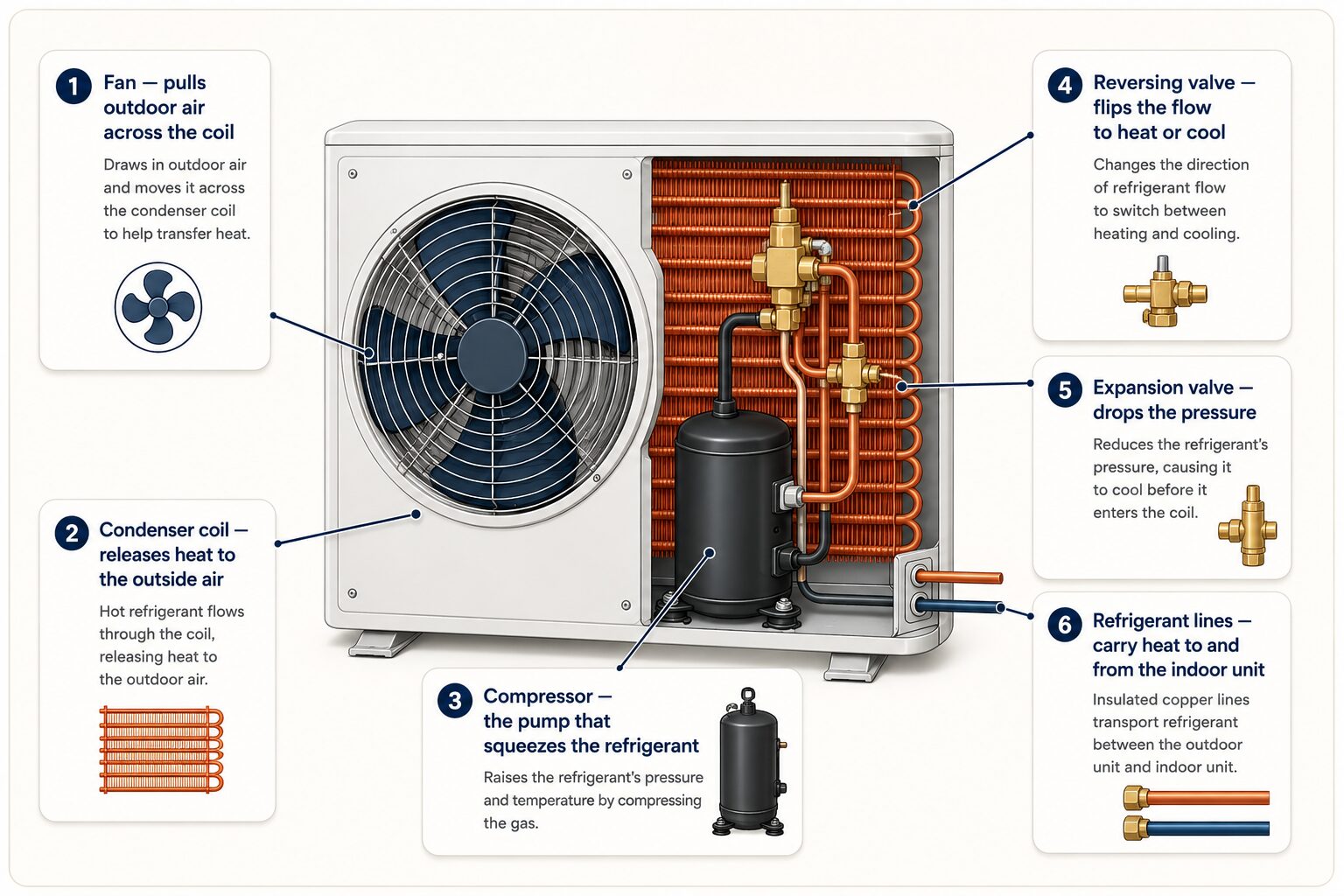

A labelled cutaway illustration of an air conditioning outdoor unit with its front panel removed, showing six parts: the fan on the front that pulls outdoor air across the coil; the finned condenser coil that releases heat to the outside air; the compressor, a black cylindrical drum at the bottom, the pump that squeezes the refrigerant; the reversing valve on the pipework that flips the flow to heat or cool; the expansion valve that drops the refrigerant's pressure; and the insulated refrigerant lines that carry heat to and from the indoor unit.

Not a cooler. Not a heater. A pump: one that moves heat wherever you want it, and asks only that you pay for the pumping.
